Significantly reduces the level of odors produced by Rendering plants
Login

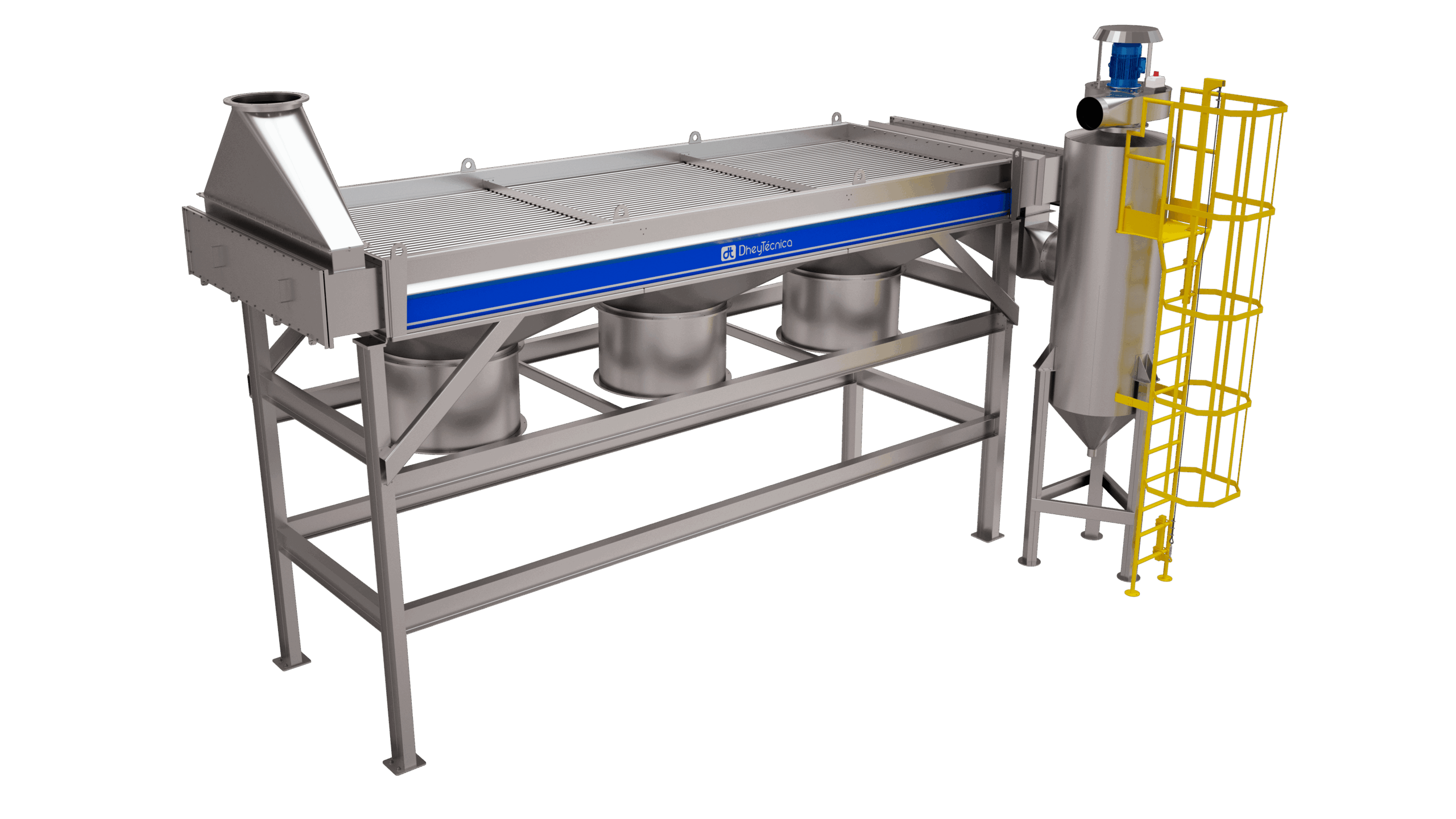

DheyTécnica’s Air Condenser are condenses and cools the organic vapors, through an indirect thermal exchange with the environment air, considerably reducing the level of odor present in the remaining gaseous stream, allowing the intermediate system to operate as the main system, interconnected to a biological filter.
The thermal exchange between process air and steam occurs due to the large exchange surface obtained with the stainless steel tubes, with aluminium fins, where the ambient air is forced to pass through high-flow fans.
Automated control guarantee energy efficiency by monitoring the condensate temperature, acting on the fans and maintaining an adequate level of vacuum for the aspiration of digesters, dryers or evaporators.
Significantly reduces the level of odors produced by Rendering plants
It does not need water, since it uses ambient air as a heat exchange agent for the condensation of vapours
Small implantation area
High condensing capacity and greater energy efficiency
Manufacture according to the requirements of NR 12
Gases extracted from drying or cooking processes
The condensates are destined for the treatment of effluents; The non-condensable are released into the atmosphere or destined for secondary treatment such as bio-filters or gas scrubbers.
| MODEL | CAPACITY (KG/H) | POTENCY (CV) |
|---|---|---|
| DHT-AC2500 | 2.500 KG/H | 2x12,5CV |
| DHT-AC3500 | 3.500 KG/H | 3x12,5CV |
| DHT-AC4500 | 4.500 KG/H | 4x12,5CV |
| DHT-AC6000 | 6.000 KG/H | 4x15,0CV |
| DHT-AC7500 | 7.500 KG/H | 4x20,0CV |
| DHT-AC10000 | 10.000 KG/H | 5X20,0CV |
